Single Hopper Double Hopper Bag Weighing Controller For Granule With High Sampling Frequency
What does BST106-H16[A] used for?
BST106-H16[A] is Suitable for Ration Packing Scale. It is with high-frequncy sampling, anti-vibration filter, high accuracy weighing precise feeding control. It is with the following application modes:
- Single-hopper-weighing Mode [Single-scale Mode]
- Double-hopper-weighing Mode [Double-scale Mode] and Bag-weighing Mode with Auto Bag-releasing or Manual Bag-releasing
What Features does BST106-H16[A] have?
- EMC design with high anti-jam for industrial environment.
- 32-bit ARM CPU with 72MHz clock & high arithmetic speed.
- 6+10 Green VFD digital tubes for English&digit display.
- 24-bit ∑-△ADC with internal resolution 1/1,000,000.
- High sampling frequency 400Hz.
- Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
- Auto Zero Tracking.
- Fall Value Auto Correction.
- Auto Pause for Deviation Alarm.
- Auto Re-feed for Negative Deviation Alarm.
- Target Batch Count & Target Batch Weight Control.
- Definable AO/COM[Communication Port].
- 3-speed[high/medium/low] feeding control by DOs or AOs.
- Recipe Number: 10.
What Technical Specification does BST106-H16[A] have?
| Display | 6+10 Green VFD digital tubes for English character and digit display |
| Weight Display Range | -99,999~+999,999 |
| Scale Capacity | Setting Range 1~999,999 |
| Scale Division | Optional 1, 2, 5, 10, 20, 50, 100, 200, 500 |
| Display Resolution | 1/100,000 |
| Weight Unit | Optional kg, t, g, none |
| Loadcell Interface | Excitation Voltage/Max. Current | DC10V/250mA [8-350Ω loadcells] |
| Signal Input Range | 0~25mV |
| Output Sensitivity of Loadcell | 1.0~2.5mV/V |
| Sampling Frequency | 400Hz |
| Non-linearity | 0.005%FS |
| Switch&Analog Signal Interface | DI | 7 Normally Open Switch Inputs |
| DO | 12 Normally Open Transistor Switch Outputs [DO]: DC24V, 500mA |
| AO | 1 AO:4~20mA |
| Digital Communication Interface | COM1 | RS232 |
| COM2 | For additional option: RS232/RS485/RS422/Profibus-DP/Ethernet modules. |
| Connectable | Host IPC/PLC, LED Remote Display, Serial Printer and Wireless Module |

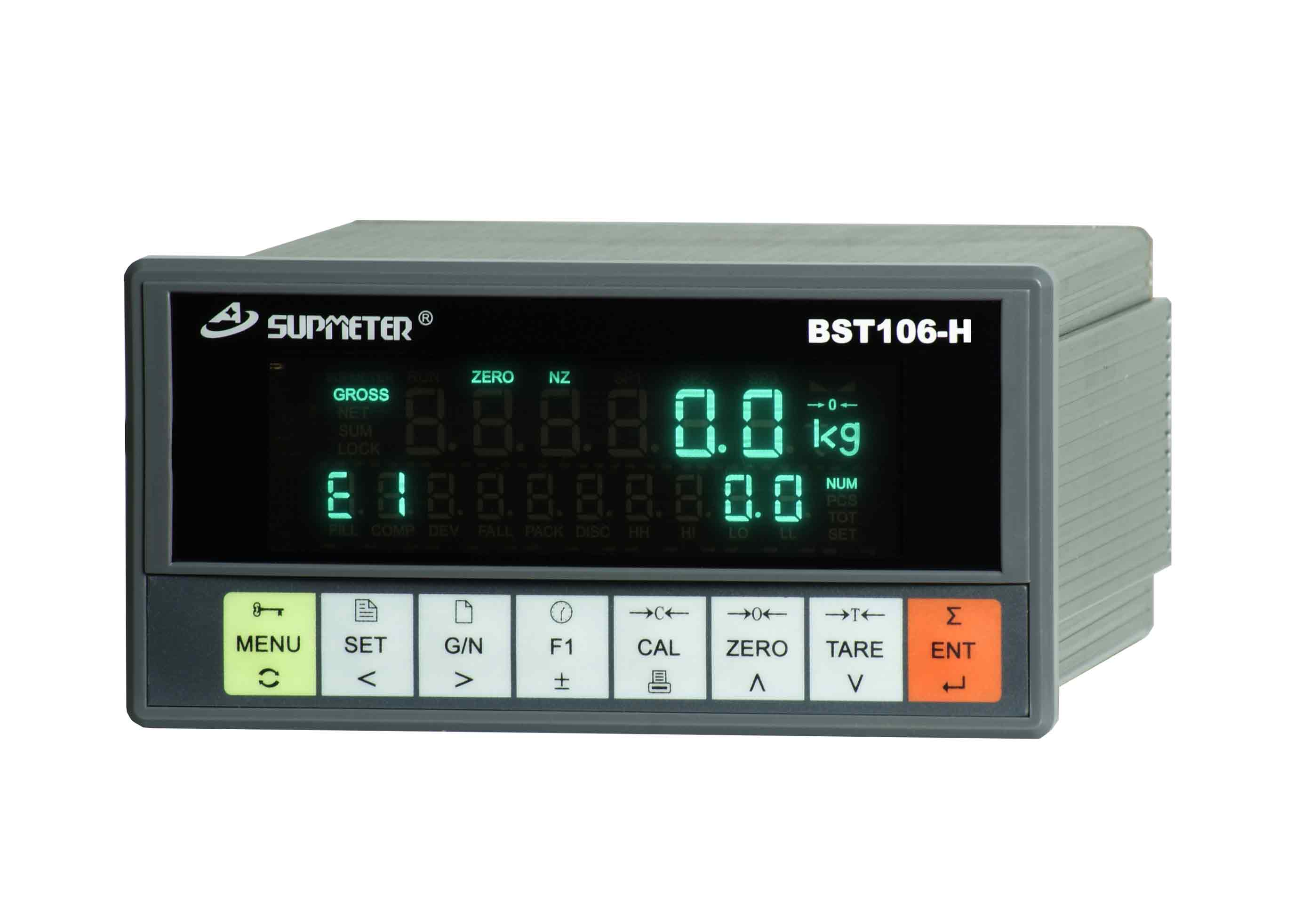

Photo:

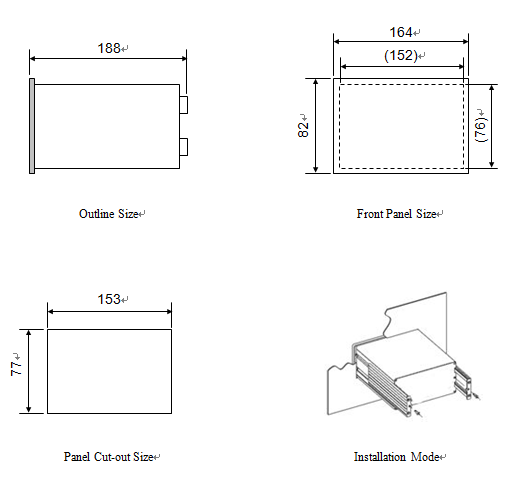

| Outline Size W×H×D[mm] | Front Panel Size W×H[mm] | Box Body Size W×H[mm] | Panel Cut-out Size W×H[mm] |
| 164×82×188 | 164×82 | 152×76 | 153×77 |
FAQ:
1. Sample is Available?
Yes. This product support free sample. As long as you can bear the freight charge.
2. What detailed information do I need to provide if I want to place an order?
We need to know the following information: accuracy, Quantity, special requirements if you have, etc.
3. Do you have any discount?
Yes, if you buy large QTY, please send us a email, we will give you a big discount.
4. What terms of payment are available?
We accept T/T, L/C, Trade assurance, Secure payment, Western Union,etc.
5.When will you arrange the production?
We will arrange the production immediately after receiving your payment.
6. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
7. How long is the warranty period?
The warranty period for our products is 12 (twelve) months.
If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.
(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)
